MS 40-CR, MS 60-CR and MS 100-CR
Sowing / Fertilizar
The MS 40-CR, MS 60-CR and MS 100-CR developed by IKEDA in partnership with EMBRAPA perform broadcast seeding of seeds, fertilizers and soil correctives and are operated by a 12 V DC motor.
They can be coupled to any vehicle that provides a voltage of 12 V DC, such as tractors (to their bumpers), coupled implements and sprayer bars, enabling, in the same operation, the distribution of supplies.

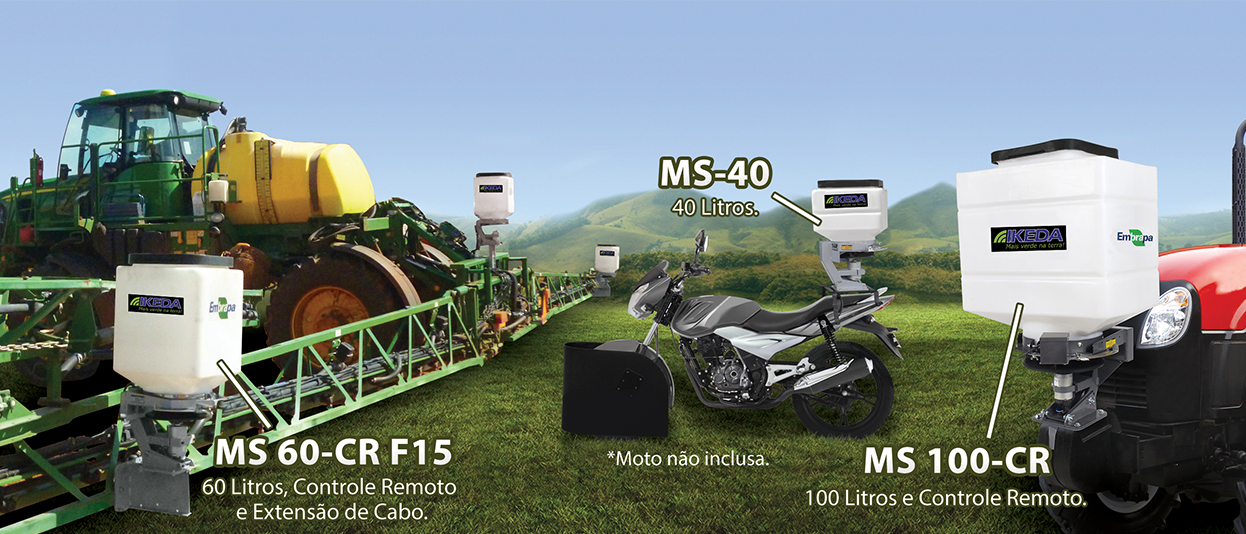

It is offered in three versions: MS 40-CR, MS 60-CR and MS 100-CR, which differ only in the volume of their seed reservoirs, respectively 40 liters, 60 liters and 100 liters.
Main Characteristics:
• Seeds reservoir of 40 liters (MS 40-CR), 60 liters (MS 60-CR) and 100 liters (MS 100-CR).
• Remote Opening and Closing of the Dosing Register. A single switch turns the electrical motor on, opening the register and turns the motor off, closing the register.
• Easy installation in any vehicle.
• The patented shaker, which works with the most varied types of products, ensures the continuous flow of the supplies shaken inside.
• Spreading range adjustment between 3 to 10 meters, through digital adjustment of the electrical motor rotation, with memory of the last adjustment.
• For better coupling to the front bumper of the tractor, a ‘‘ Backplate T ’’ is offered, which allows its attachment between the front counterweights of the tractor.
Models
Model
Working Width
Weight
Remote Control
Bin Capacity
Indication
MS 40-CR
3 to 10 meters
27 kg
Yes
40 Liters
Tractors
MS 40-CR F15
3 to 10 meters
29,2 kg
Yes
40 Liters
Sprinkle Bar
MS 60-CR
3 to 10 meters
28 kg
Yes
60 Liters
Tractors
MS 60-CR F15
3 to 10 meters
31 kg
Yes
60 Liters
Sprinkle Bar
MS 100-CR
3 to 10 meters
29,8 kg
Yes
100 Liters
Tractors
